SO-HMK70-002-FC Female inserts
Heavy duty connector Hybrid module – 09140023141 HMK70-002-FC female 70A modular industrial HDC heavy duty connector – China Smico Electrical

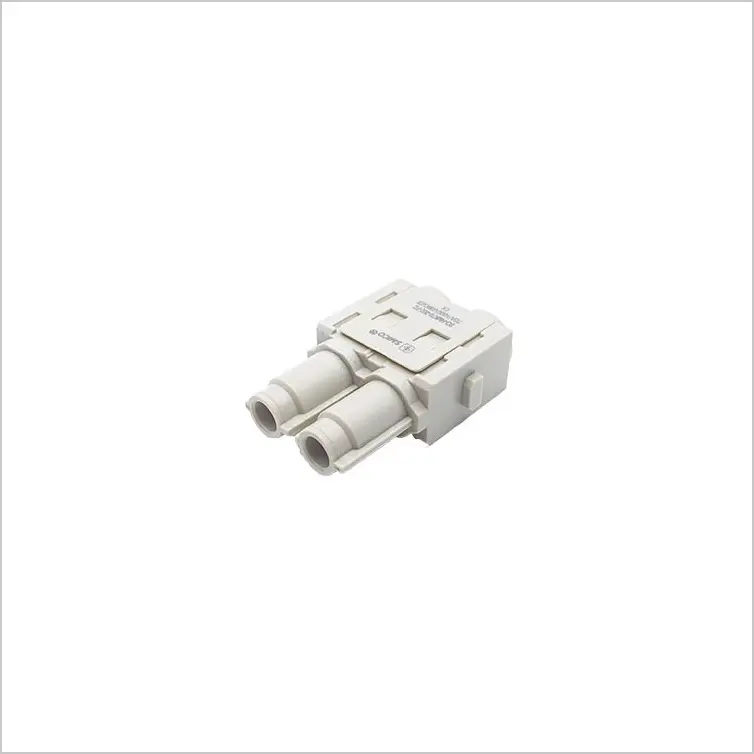

09140023141 HMK70-002-FC female 70A modular industrial HDC Hybrid module heavy duty connector
70A modular HDC Crimp termination ,use different cable range crimping contacts that you need and use crimping tool and removal tool
Inserts | |
Number of contacts | 2 |
Electrical data acc. to EN 61 984 | |
—Rated current | 70A |
—Rated voltage | 1000V |
—Rated impulse voltage | 8kV |
-Pollution degree | 3 |
Insulation resistance | ≥10^10Ω |
Material | polycarbonate |
Limiting temperatures | -40℃…+125℃ |
Flammability acc. to UL 94 | V0 |
Mechanical working life -mating cycles | ≥500 |
Contacts | |
Material | copper alloy |
Surface | hard-silver plated |
Contact resistance | ≤0.5mΩ |
Crimp terminal | |
—mm2 | 10-25mm2 |
